AC synchronous servo motor flange 80mm 0.4KW, 0.75KW, 1KW
HSM series(AC 220V) servo motors have various series of dimensions, 60mm,80mm,110mm,130mm,150mm,180mm；four series of rated speeds 1500rpm,2000rpm,2500rpm,3000rpm. Motor configure standard 2500P/R incremental encoder. Selection of high temperature resistance, high-energy product quality permanent magnetic material,optimal design of the electromagnetic parameters, can maintain the motor a good working condition and fast response on long-running. IP65 protection, the motor apply to the industrial environment in particular.
HNC Automation provides customizing solutions based on any special requirements of customers, e.g.: Rated torque, rated speed, maximum speed, dimension, connection & encoders.
Feature:
- Compact architecture and high power density
- Middle rotor inertia and rapid response
- Super high coercivity rare earth permanent magnet
- Overheat protection capability
- Strong anti-demagnetization capability
- Various frame installation size
- Full-closed design
Parameter
<
| Specifications |
| Motor Model | S80-013M30 | S80-024M30 | S80-033M30 |
| Rated Voltage (V) | 220 | 220 | 220 |
| Rated Power (KW) | 0.4 | 0.75 | 1 |
| Holding Torque (N.m) | 1.3 | 2.4 | 3.3 |
| Peak Torque (N.m) | 3.9 | 7.2 | 9.9 |
| Rated Speed (rpm) | 3000 | 3000 | 3000 |
| Rotor Inertia (Kg.m²) | 0.74*10-4 | 1.2*10-4 | 1.58*10-4 |
| Rated Current (A) | 2.6 | 4.2 | 4.5 |
| Voltage Constant (V/1000r/min) | 21.05 | 22.77 | 29.27 |
| Line-Line Resistance (Ω) | 1.858 | 0.901 | 1.081 |
| Line-Line Inductance (mH) | 11.956 | 6.552 | 8.29 |
| LA(mm) | 135 | 160 | 181 |
| Weight (Kg) | 2.4 | 3.2 | 3.9 |
| Encoder Line Number (PPR) | 2500 |
| Insulation Class | Class B (130°C) |
| Safety Class | IP65 |
| The Operating of Environmental Conditions | Temperature: -20°C~+50°C Humidity: Below 90% RH No dewing |
| Motor Winding Plue | Winding lead wire | U (red) | V (yellow) | W (blue) | PE (yellow, green / black) |
| Plug serial number | 2 | 3 | 4 | 1 |
| Encoder Plug | Signal lead wire | 5V | 0V | A+ | B+ | Z+ | A- | B- | Z- | U+ | V+ | W+ | U- | V- | W- | PE |
| Plug serial number | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 1 |
| | | | | | | | | | | | | | | | | |
| Note: The motor with brake lengthened 44 mm, motor weight increased by 0.5 kg | | | | | | | | | | | | | |

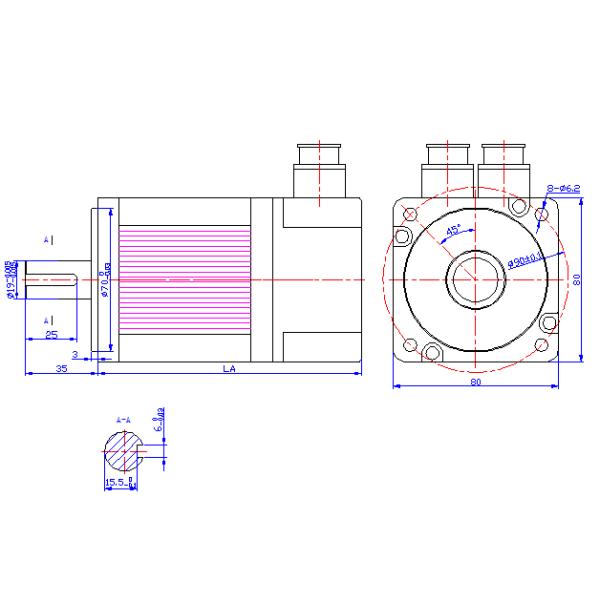

Dimensions
|
|
